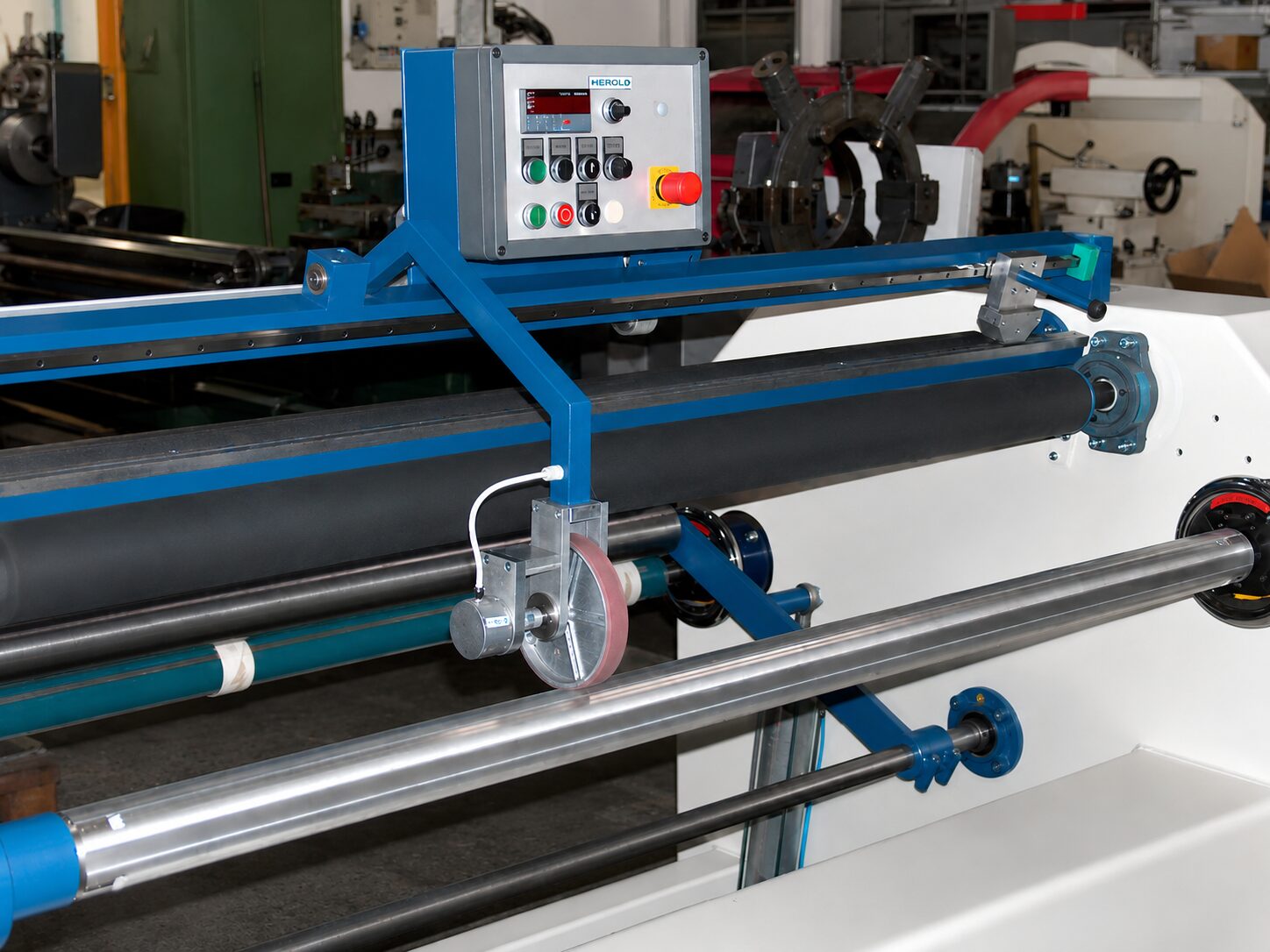

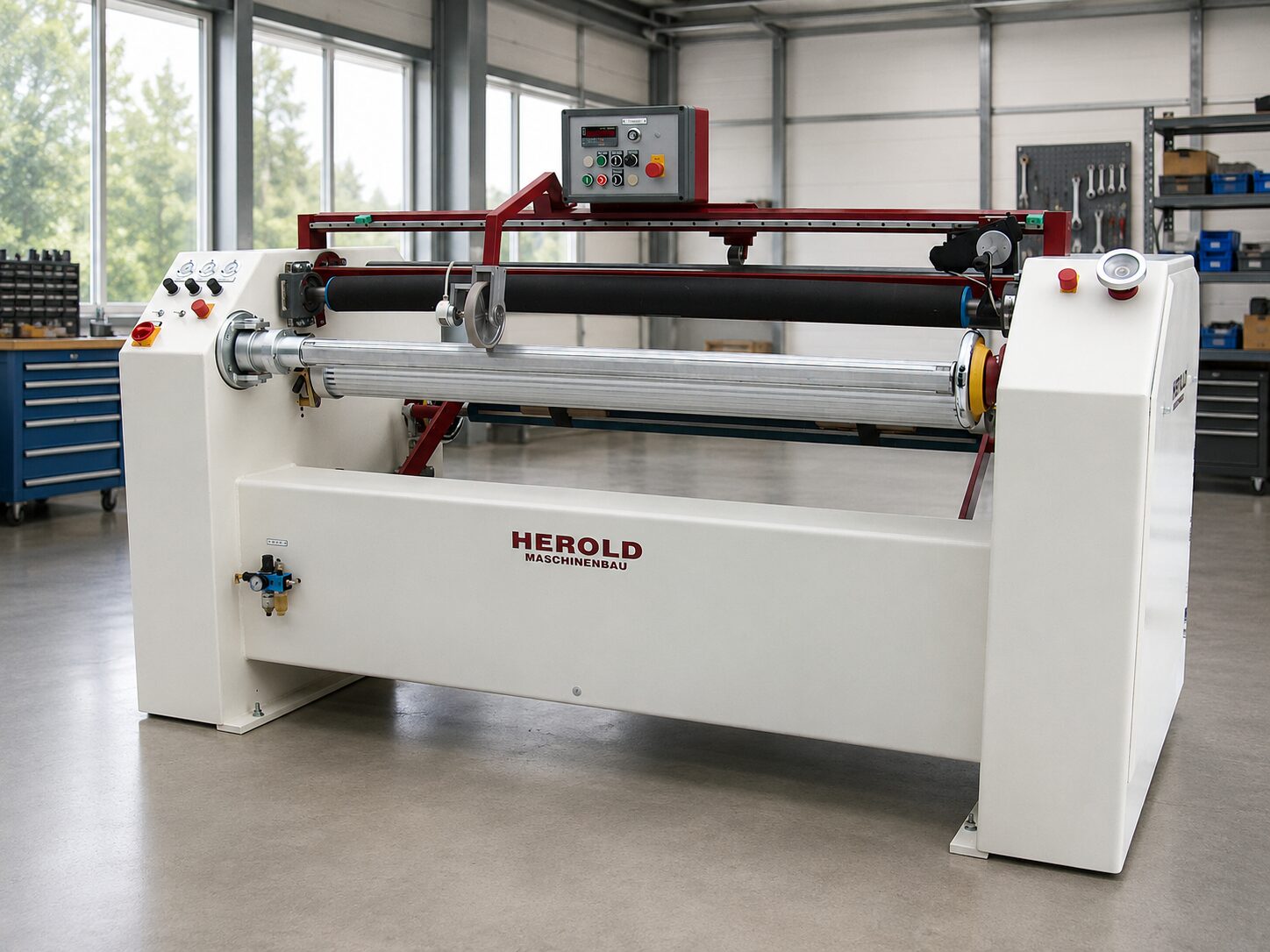

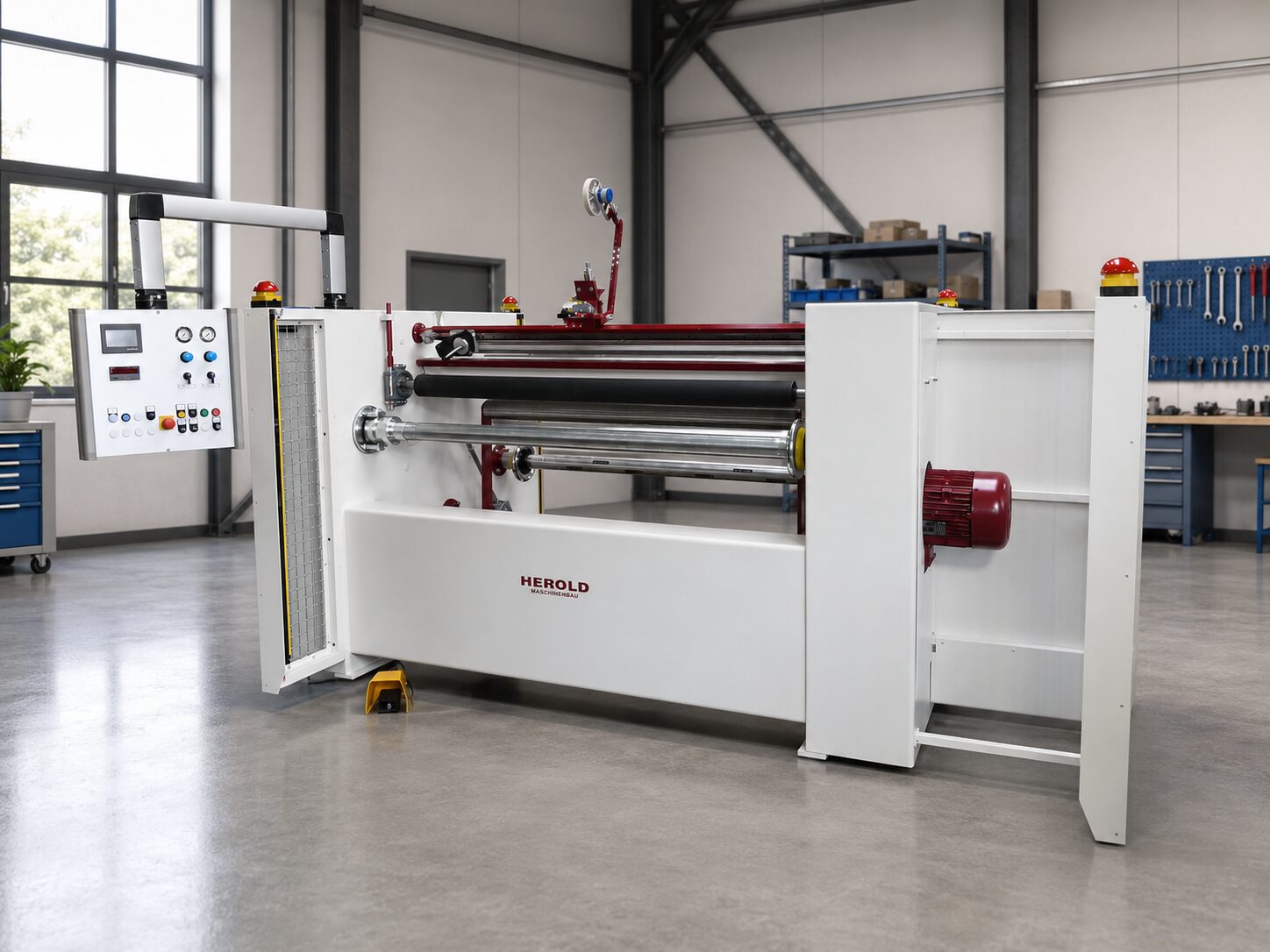

Log winders UWM-500
The Log winders UWM 500 is designed with two shafts to process a wide variety of materials. It features expansion shafts and a metre counter with an automatic shut-off function. The operation is semi-automatic; the machine is loaded and unloaded manually.
Technical specifications
Log winders UWM-500
| Materials | PE foam, felt, adhesive tapes |
|---|---|
| Material width | max. 2500 mm |
| Working height | 1100 mm |
| Roll diameter / rewinding | max. 500 mm |
| Roll diameter / unwinding | max. 1400 mm |
| Roll weight / rewinding | max. 50 kg |
| Roll weight / unwinding | max. 200 kg |
| Winding speed | 0 – 120 m/min |
| Inner core diameter | 3" |
